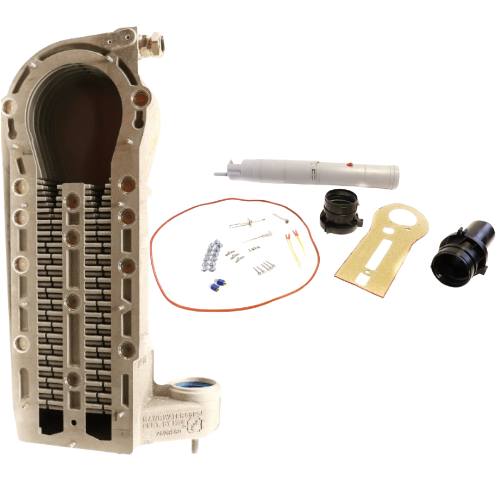

| P/N 383-500-775 Heat Exchanger Block Kit Ultra 155 Contents | ||
|---|---|---|
| Description | Part Number | Quantity |
| Section Cast Aluminum Heat-Exchanger Coat 155 | 319-000-022 | 1 |
| Bracket Flue Pipe 80mm | 460-005-797 | 1 |
| Adapter Air Inlet with Drain 80mm Plastic | 560-907-707 | 1 |
| Adapter Flue Pipe 80mm Plastic | 560-907-771 | 1 |
| Flue Pipe with Drain 80mm Plastic | 560-907-772 | 1 |
| Asy-Nut Washer Hex M6 Ø18mm OD S Zp | 561-928-449 | 11 |
| Clamp Pipe-Flue 80mm Ultra | 562-500-002 | 1 |
| Instructions Block Replacement Ultra S1,S2,S3, and S4 | 550-100-055 | 1 |
| Asy Bag T-Sensor & Adapter Hardware UR 155/399 | 540-131-106 | 1 |
| Contents of bag assembly: | ||
| Temperature-Sensor Flue | 510-312-217 | 1 |
| Igniter Electrode Double Plate | 511-330-250 | 1 |
| Gasket Igniter Electrode Ultra | 511-330-253 | 1 |
| Temperature Sensor Flue NTC | 511-724-292 | 1 |
| Temperature-Sensor NTC Duplex12K3 M6x1 | 511-724-302 | 2 |
| Screw Washer Head Slotted 10-32 x 1-1/4 | 562-137-316 | 5 |
| Screw Socket Head Cap M4x8 SS | 562-100-003 | 2 |
| Plate Locking - Remeha 57351 | 562-248-708 | 3 |
| Screw Machine Hex Head M4-.7x10 SS | 562-650-121 | 3 |
| Harness-Wiring for Ultra Heat-Exchanger | 591-391-764 | 2 |
| Assembly Box Insl Plate-Cover & Gasket UR 155-399 | 540-131-107 | 1 |
| Contents of box assembly: | ||
| Gasket Chamber Cover Plate Remeha 54752 | 590-318-005 | 1 |
| Insulation Plate-Cover/Burner 418.5x180x4mm | 590-318-032 | 1 |
Download Product Information:
Weil McLain Heat Exchanger Block Replacement Installation Instructions
