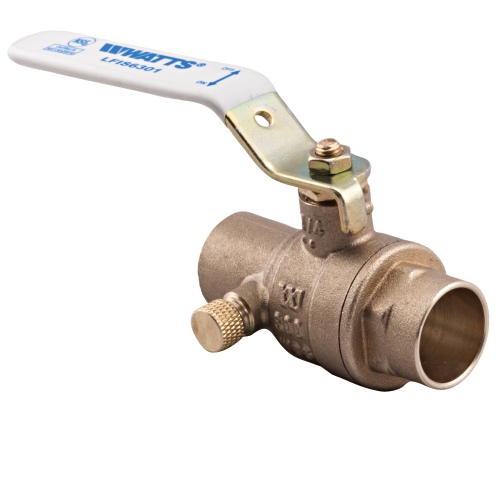

Watts Series LFIS6301 Full Port Ball and Waste Ball Valve

The Watts Series LFIS6301 2-Piece Full Port Ball and Waste Lead Free Copper Silicon Alloy Ball Valves feature a side drain port to drain or vent downstream line when the valve is in the off position. The LFIS6301’s full port orifice ensures maximum flow capacity and its ball is wiped clean during each operation of the valve. The LFIS6301 features Lead Free construction to comply with Lead Free installation requirements.

This 0123628 two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It has a lead free brass body, 1/2 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 PSI (41 BAR) WOG non-shock.

Features:


• Drain port allows draining or venting of downstream line when valve is in the off position
• Virgin PTFE valve seats are standard. Suitable for a full range of liquids and gases. Consult factory for specific applications
• Ball is wiped clean during each operation of the valve
• Blow-out proof, pressure retaining stem
• Vinyl insulator on heavy duty handles
• Fast, quarter-turn open or close operation
• Low operating torque
• Adjustable stem packing gland
