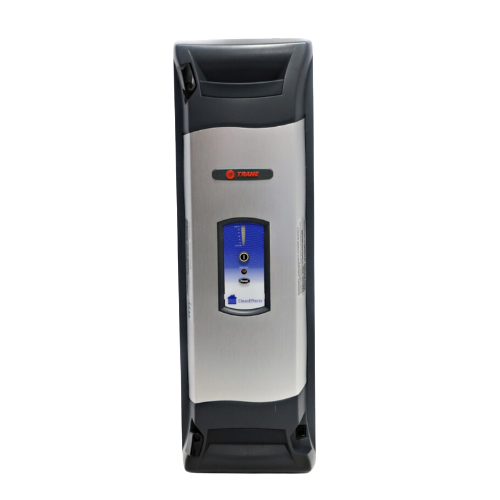

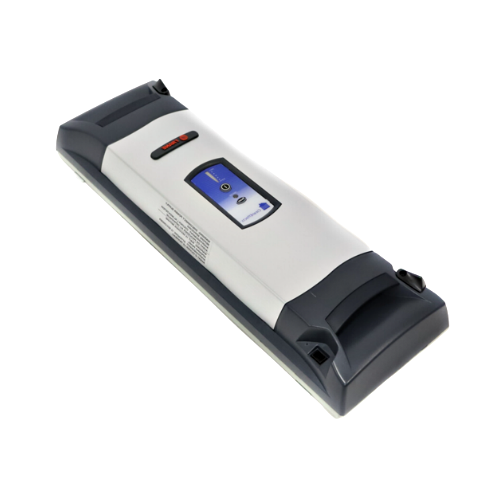

Trane KIT16533 Complete Power Door Assembly Kit

Trane KIT16533 Complete Power Door Assembly Kit
Images for general purposes only. Actual may be different than depicted.
Trane KIT16533 Complete Power Door Assembly Kit Genuine HVAC Trane KIT16533 Cleaneffects Filtration System Power Door Assembly Kit Trane KIT16533 Power Pack Door for  Cleaneffects Filtration System

Trane KIT16533 Complete Power Door Assembly Kit

SKU: KIT16533
Rating:
Quantity Price Stock
1
Usually Ships 3 - 4 Weeks
$925.34     /ea
1
0
$0.00
0
$0.00
0
KIT16533

The KIT16533 is a replacement communicating power pack door designed for use on the Trane Electronic Air Cleaner model #'sTFD210CLFR000FA

  • TFD210CLFR000EC
  • TFD21DCLFR000FA
  • TFD21DCLFR000EC
  • TFD210CLFR000EA
  • TFD21DCLFR000EB
  • TFD21DCLFR000EA
  • TFD210CLFR000EB

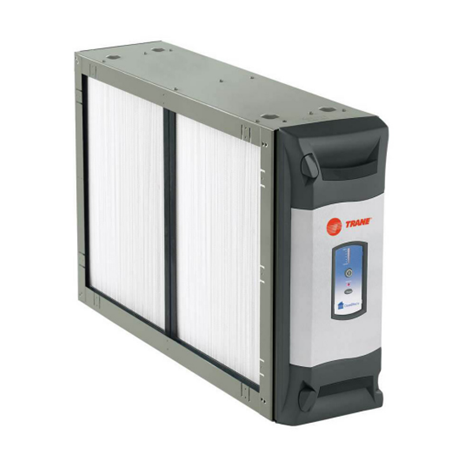

The CleanEffects Whole House Air Filtration System captures 99.98% of particles and allergens that pass through the air cleaner.  Designed with advanced IFD technology to deliver clean indoor air.  The KIT16532  serves as the main communication and power source for controlling this electric air cleaner.  It converts the 24 VAC to the high-voltage direct current providing power to the field charger and collection cells.

The air cleaner door has an LED display indicating the operating status, set-up mode, and on when to clean the prefilter or collection cells.  The collection cells, pre-filter, and field charger can be easily accessed by flipping the two door latches.  It is recommended to turn off the power and wait approximately 15 seconds for the lights to go off before cleaning or replacing air cleaner internal parts.



LED LIGHT DISPLAY :

  LIGHT
    COLOR
DESCRIPTION
GREEN  setting cleaning interval of Pre-filter (1, 2, or 3 months)
YELLOW  setting cleaning interval of Collection Cells (2, 4, 6, or 9 months)
RED  Power level setting of the Field Charger to a maximum, medium, or minimum
Voltage Convertion 24VAC to Higher voltage
Display LED Light

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
I am looking for a power door for a Trane Clean Effects TFD210CLFR000FA? Mine has died after 4 years.
Asked on January 21, 2024 by Bruce from Alberta, Canada
1 Answers

Have an answer? Click Here

A:
Yes, the KIT16533 power door assembly is suitable for the TFD210CLFR000FA.
Replied on January 22, 2024 by Ori from Industrial Stores

Q:
I'm looking for a power door for Trane Cleaneffects TFD210ALFR000BC, don't see that specific model listed on any of the pages ,KIT16533 has the closest model number. What is the correct door?
Asked on September 20, 2023 by Peter from Rochester Hills, MI
1 Answers

Have an answer? Click Here

A:
For your model TFD210ALFR000BC, the Complete Power Pack Door Assembly was part# KIT14905.

The KIT14905 is obsolete and is superseded by Trane KIT16533 Complete Power Door Assembly Kit.
Replied on September 21, 2023 by Brian from Industrial Stores

Q:
Is this compatible with the 21" downdraft TFD21DALFR000AA? This model appears to have same 21" dimensions but is the updraft version. Searching I seem to be able to find kits for pretty much every other CleanEffects units, except for the TFD21DALFR000AA. Thanks for the help!
Asked on July 30, 2023 by Erik from Redmond, WA
1 Answers

Have an answer? Click Here

A:

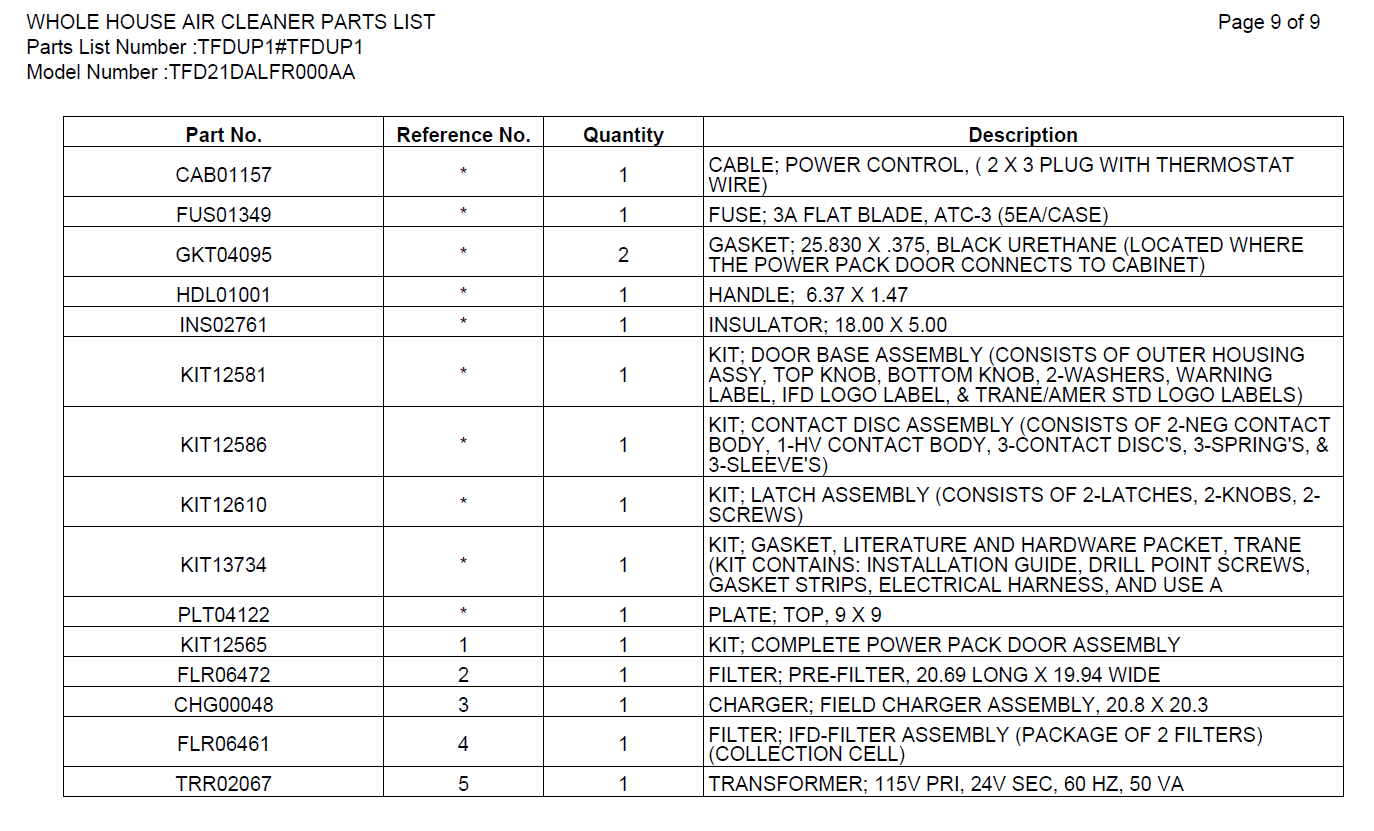

The following lists the replacement parts for your Trane CleanEffects TFD21DALFR000AA unit.

You will note that the KIT12565 is listed as the Power Pack Door Assembly.

The KIT16533 is the direct replacement for the KIT12565. At the time of writing, one unit is available to ship from stock.





Replied on July 31, 2023 by Ori from Industrial Stores

Q:
Can you confirm correct KIT# for Trane Clean Effects Model #TFD175CLFR000CE, Serial #111343TY1E
Asked on June 25, 2023 by Scott from 14534
1 Answers

Have an answer? Click Here

A:
The correct Power Pack Door for Model #TFD175CLFR000CE, Serial #111343TY1E was KIT15698.
The KIT15698 is no longer available and is replaced by KIT16532.
Replied on June 26, 2023 by Brian from Industrial Stores

Q:
What is the correct Power Door model for our Trane model # TFD235ALAH000AA serial # 7203JC67V?
Asked on February 23, 2023 by Jack from Frederick, MD
1 Answers

Have an answer? Click Here

A:
KIT16535 is correct Power Pack Door for your Trane model # TFD235ALAH000AA/ serial # 7203JC67V.
Click here to see the product page for Trane KIT16535.
Replied on February 23, 2023 by Brian from Industrial Stores

Q:
Which TRANE COMPLETE COMMUNICATING POWER PACK DOOR ASSEMBLY kit for TFD245alfr000aa
Asked on December 19, 2022 by Michael from White Plains, NY
1 Answers

Have an answer? Click Here

A:
For Trane Air Handler model# TFD245ALFR000AA, the Complete Power Pack Door Assembly was KIT12566.
KIT12566 is no longer available and is replaced by KIT16536.
Replied on December 19, 2022 by Brian from Industrial Stores

Q:
Does this work for Model TFD210ALFR000BB? My Power Head died. Says it was manufactured in 2008.
Asked on November 17, 2022 by Robert from Gig Harbor, WA
1 Answers

Have an answer? Click Here

A:
According to our internal sources, KIT16533 Complete Communication Power Pack Door Assembly is the correct part for your model TFD210ALFR000BB unit.
Replied on November 22, 2022 by Ori from Industrial Stores

Q:
We are looking for the correct power door for the cleaneffects model tfd175alfr000cd, serial # 10025s8gfx dont know if the kit 16533 is correct
Asked on July 29, 2022 by Eric from Streamwood, Illinois
1 Answers

Have an answer? Click Here

A:
The correct Power Door for your Trane model# TFD175ALFR000CD, serial# 10025S8GFX is KIT16532 Communicating Power Pack Door.

Click here to see the product page.
Replied on July 29, 2022 by Brian from Industrial Stores

Q:
Hello, I'm looking for the KIT part # to replace the complete power door assembly for this model #TFD235CLAH000EA, Serial #13401XYSQE.
Asked on June 16, 2022 by Terry from Tampa, Florida
1 Answers

Have an answer? Click Here

A:
KIT16535 is the correct Power Pack Door for Trane Model #TFD235CLAH000EA, Serial #13401XYSQE.
Click here to see the product page.
Replied on June 20, 2022 by Brian from Industrial Stores

Q:
What replacement door kit is available for Trane# TFD175ALFR000AA?
Asked on March 12, 2022 by Jose from New Windsor, NY
3 Answers

Have an answer? Click Here

A:
What is the serial# of your Trane unit? We will need this information to find the correct replacement door kit.
Replied on March 14, 2022 by Brian from Industrial Stores
A:
Serial# 19374KUA55
Replied on March 30, 2022 by Michael from Colorado Springs, Co. 80925
A:
The correct Power door for Trane Model# TFD175ALFR000AA, Serial# 19374KUA55 is KIT16532.

You can click here to view the product page for the Trane KIT16532 Communicating Power Pack Door.
Replied on March 30, 2022 by Brian from Industrial Stores

Q:
Trying to see if this door would fit a Trane CleanEffects system, TFD175CLFR000CE, Serial #10491S3D1E. Side door dimensions are 17" by 7". Thank you.
Asked on January 19, 2022 by Elizabeth from Valparaiso, Indiana
1 Answers

Have an answer? Click Here

A:

We cannot verify that Trane KIT16533 will fit your Trane model TFD175CLFR000CE.

The original part# sold with your unit was KIT15968, but it is now obsolete.
Currently, Trane recommends KIT16532 as the direct replacement for KIT15698.

Unfortunately, we do not have the exact dimensions on these items.

Replied on January 19, 2022 by Brian from Industrial Stores

Q:
Does this kit work for model TFD175ALFR000BB?
Asked on December 31, 2021 by Kenneth from Maryland
1 Answers

Have an answer? Click Here

A:
For model TFD175ALFR000BB whole house air cleaner you need Trane Power Door Kit 14904.

Replied on December 31, 2021 by Ori from Industrial Stores

Q:
Is the KIT16533 the correct replacement for the model TFD17DALFR000AA?
Asked on September 01, 2021 by Jerry from Portland Oregon
1 Answers

Have an answer? Click Here

A:
We can't find a match for the KIT16533 for your Trane unit.  We do show the KIT16532 as a replacement for your Trane model.
Replied on September 01, 2021 by Ori from Industrial Stores

Q:
My Clean Effects Power Door is model KIT16535. Is this the replacement for that door?
Asked on August 27, 2021 by Joseph from Orlando FL
1 Answers

Have an answer? Click Here

A:
The Trane KIT16533 is a dust seal and can be used with when overload auxiliary contact kit not used. The frame size fits all manual reset solid state overloads.  However, we do not believe that the KIT6533 will fit Power Door - model KIT16535.
Replied on August 27, 2021 by Ori from Industrial Stores

Q:
Is this part for Model TFD210ALUPGRDAA?
Asked on April 20, 2021 by Roy from Sierra Vista, AZ
1 Answers

Have an answer? Click Here

A:
Yes, the Trane KIT16533 power door assembly kit will work with Trane model TFD210ALUPGRDAA.
Replied on April 20, 2021 by Ori from Industrial Stores

Q:
Is the full power door replacement for the trane cleaneffects model TFD210ALFR000AA.?
Asked on June 20, 2018 by Nathan from BC, Canada
1 Answers

Have an answer? Click Here

A:
Yes the orginial assembly KIT12565 has been superceded by the KIT16533. This assembly is currently not in stock, it has a lead time of 2-3 weeks.
Replied on June 20, 2018 by Ron from Industrial Stores
