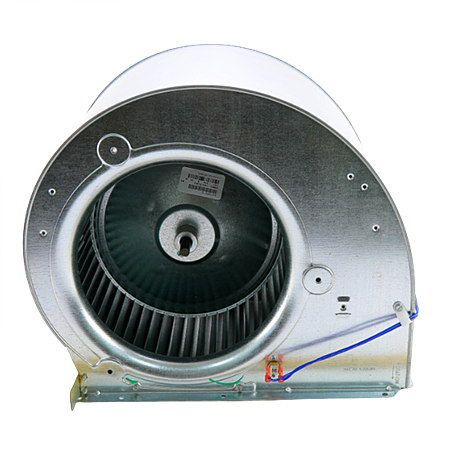

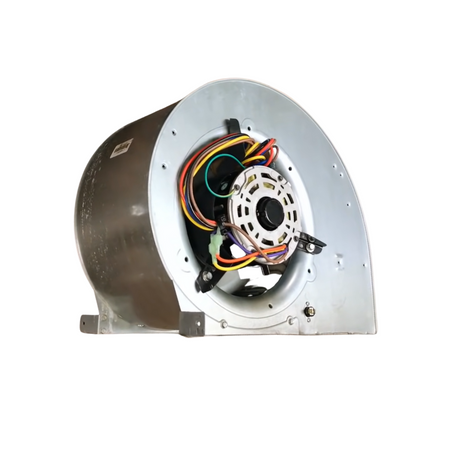

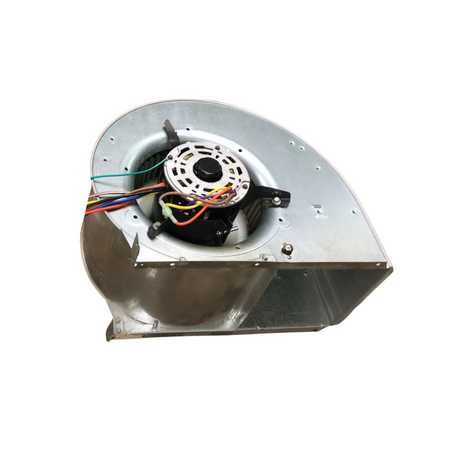

The Nordyne 1003481 is a complete blower assembly replacement for gas furnaces.

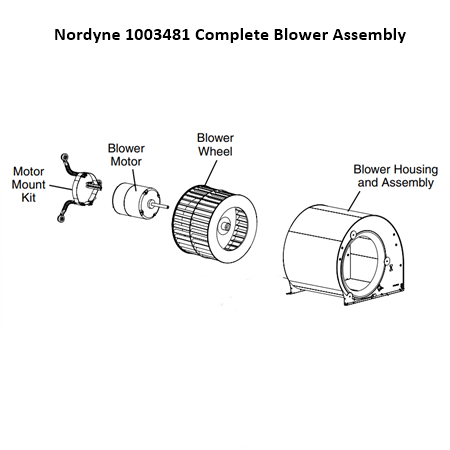

The assembly consists of a 1hp motor, 667280R blower wheel, 01-0026 run capacitor, mounts, and housing.
The 1003481 is a direct replacement for Nordyne model numbers M0035004 and 904684. This is compatible with the following furnace model:
| FG7SA 108C FG7SD 108D FG7SM 072D GDD92A120D GUH92A090C KG7SA 108C KG7SD 108D KG7SM 072D MGC2SA108C MGC2SD108D MGC2SM072D VG7SC 108D |
FG7SA 126C FG7SD 120D FG7SM 090D GDD95A072C GUH92A108D KG7SA 126C KG7SD 120D KG7SM 090D MGC2SA126C MGC2SD120D MGC2SM090D VG7SD 090D VG7SL 120D |
FG7SC 090D FG7SK 108C FG7SM 118D GDD95A090C GUH92A120D KG7SC 090D KG7SK 108C KG7SM 118D MGC2SC090D MGC2SK108C MGC2SM118D VG7SD 108D VG7SM 072D |
FG7SC 108D FG7SK 126C GDD80A108C GDD95A118D GUH95A090C KG7SC 108D KG7SK 126C M4RC 090D MGC2SC108D MGC2SK126C VG7SA 108C VG7SD 120D VG7SM 090D |
FG7SC 120D FG7SL 090D GDD80A126D GUH80A108C GUH95A108D KG7SC 120D KG7SL 090D M4RC 108D MGC2SC120D MGC2SL090D VG7SA 126C VG7SK 108C VG7SL 090D |
FG7SD 090D FG7SL 120D GDD92A090C GUH80A126D GUH95A120D KG7SD 090D KG7SL 120D M4RL 090D MGC2SD090D MGC2SL120D VG7SC 090D VG7SK 126C |
| Run Capacitor | 15 MFD, 370V |
|---|---|
| Motor Horsepower | 1hp |
| Blower Wheel Dimension | 11" x 10" |
