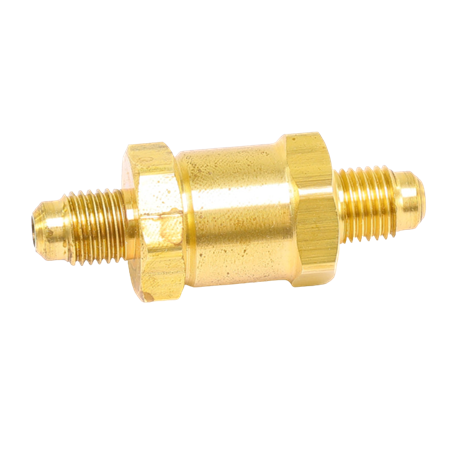

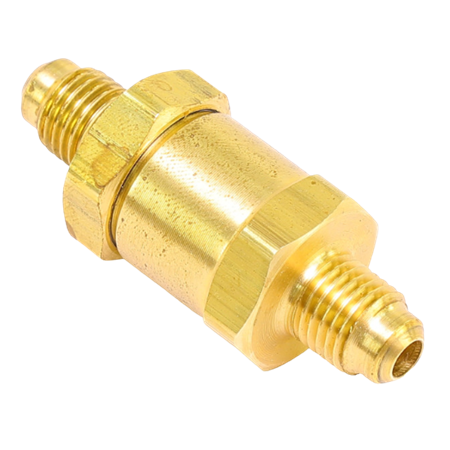

Mueller Industries A15620 Check Valve 1/4" Inline Filter

Name: Mueller Industries A15620 Check Valve 1/4" Inline Filter
Brand: Mueller Industries
SKU: A15620
Price: 33.72 USD
Availability: InStock
Rating: 5 (2 reviews)

Images for general purposes only. Actual may be different than depicted.

Mueller Industries A15620 Check Valve 1/4" Inline Filter

SKU: A15620

Brand:

Rating: (2)

Quantity	Price	Stock
4 Usually Ships 1 - 2 Weeks	$33.72 /ea	4

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The A15620 is an inline check valve with a 1/4” connection size. The unit's continuous operating temperature is ‐40°F to 300°F or ‐40°C to 149°C and has a 700 psig (48 bar) design pressure.

The valve is designed with a neoprene seat for positive isolation and pulsation dampening. It allows liquid to flow in one direction only and prevents backflow to the piping systems.

The A15620 can be easily installed and has flare-to-flare connection ends. The inline check valve complies with EU/UK Pressure Equipment Directive Regulation and UL/cUL Recognized.

Connection Size	1/4" (6 mm)
Connection Type	Flare to Flare
Maximum Abnormal Pressure	700 psig, 48 bar
Continuous Operating Temperature	‐40°F/300°F, ‐40°C/149°C
Pressure to Open	<1 psi
Approval	UL/cUL Recognized

Download Product Information:

Mueller A15620 Check Valve Technical Datasheet

Write a Review

By Gary

from BAY CITY TX

Yes, I would recommend this product to a friend or co-worker

5.0

all good

By Will

from

Yes, I would recommend this product to a friend or co-worker

5.0 Works as intended with minimal fuss

We installed these to prevent refrigerant backflow and they worked exactly as we needed them to - there were minimal check valves with 1/4SAE flare connections on the market with short lead times but Industrial Stores got them to us quickly and easily.
