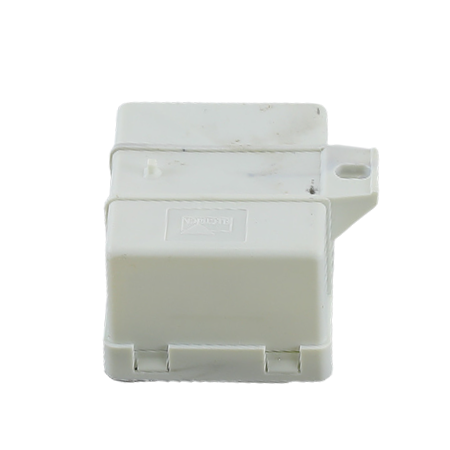

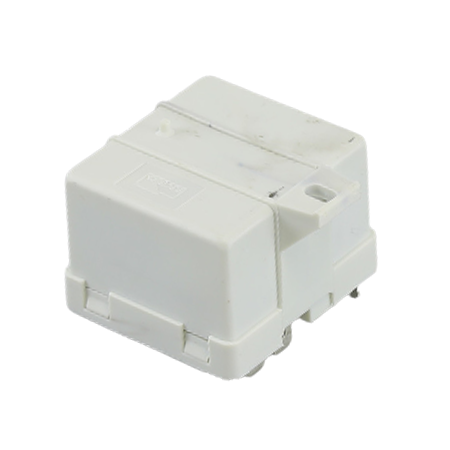

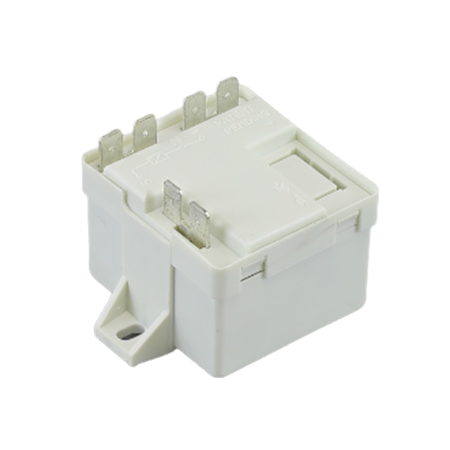

The 16025 is a potential relay that has a power rating of 1/3 HP, 220V, and 60 Hz frequency. The relay has quick-connect terminals with 35 Amps contact rating. UL-listed and CSA-certified.
The potential relay is mainly used for start capacitors. Its function is to cut off the start capacitor's circuit connection once the motor has reached its proper voltage level.
The unit can easily be installed with the tab-type brackets constructed on the plastic cover.
The 16025 replaces the following part numbers:
The MARS 16025 is a 220V potential relay used in motor-starting circuits for HVAC and refrigeration compressors.
A potential relay monitors voltage in the motor’s start winding and disconnects the start capacitor after the motor reaches the required operating condition.
The MARS 16025 is designed for 220V AC applications.
This relay is commonly used in single-phase HVAC and refrigeration compressor starting circuits.
The relay has a 35A contact rating.
The MARS 16025 is rated for applications up to 1/3 HP.
The relay uses quick-connect terminals for straightforward installation and replacement.
Yes. It can be used as a replacement when the voltage, pick-up range, drop-out range, terminal arrangement, and mounting style match the original relay specifications.
Confirm the system voltage, relay calibration, terminal configuration, mounting method, and compressor manufacturer requirements before installation.
| Frequency | 60 Hz |
|---|---|
| Drop-out Voltage | 60 to 135V |
| Hold Voltage | 500 |
| Pick-up Voltage | 239 to 268V |
| Approvals | UL-listed, CSA-certified |
| Contact Rating | 35 Amps |
| Voltage | 220V |
| Horsepower | 1/3 HP |
| Terminal Style | Quick Connect |
