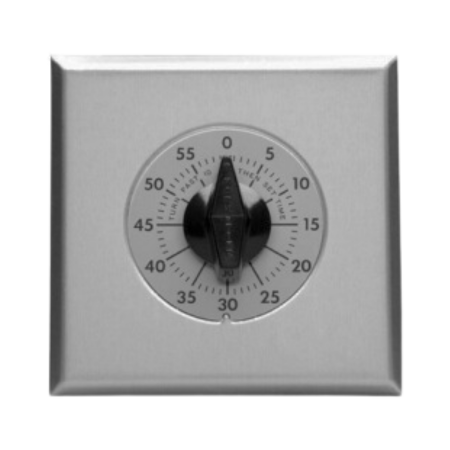

The Marktime 74114AB is a heavy-duty SPDT wall box time switch with a 120-minute (2-hour) timer. It operates at 1Hp, 240V, 60 Hz, and utilizes a 360-degree wind-up mechanism. UL-listed and CSA-certified, ensuring compliance with safety and performance standards.

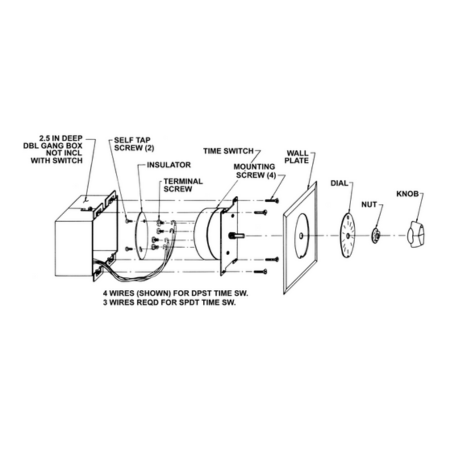

This time switch comes complete with a brushed aluminum wall plate, switch, a D444 dial, a K35G1 knob, an insulator, and mounting screws. It is ideal for removing excess moisture in high-humidity areas to prevent mold and bacteria growth while improving indoor air quality.
Designed to fit into a standard NEMA double-gang wall box mount, built for demanding applications requiring a 28 Amp load. It remains easy to install and operate, making it suitable for residential and commercial settings, including pools, spas, and saunas.
Check out other models with different timer settings to suit your specific needs:
| DPST | SPDT | ||
| 72130AB 72132AB 72134AB 72136AB 72144AB 72146AB 72131AB 72137AB |
60 Minute 2 Hour 5 Hour 12 Hour 15 Minute 30 Minute 60 Minute, with hold 12 Hour, with hold |
74112AB 74116AB 74118AB 74122AB 74124AB 74113AB 74119AB |
60 Minute 5 Hour 12 Hour 15 Minute 30 Minute 60 Minute, with hold 12 Hour, with hold |
| Voltage | 240V |
|---|---|
| Horsepower | 1Hp |
| Frequency | 60 Hz |
| Wind-up Mechanism | 360-degree |
| Timer | 120-minute (2-hour) |
| Applications | Residential and Commercial |
| Approvals | UL Listed and CSA Certified |
| Material | Aluminum |
| Switch Configuration | SPDT |
| Manufactured in | USA |
Download Product Information:
Marktime 72000AB & 74000AB Wall Box Time_ Switches Installation Guide
