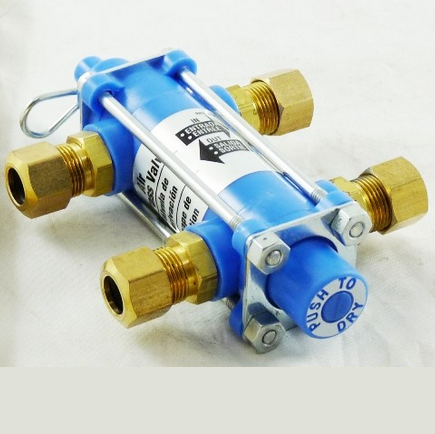

With the Hankison By-Pass Valve you can service your system components and still use the system. The By-Pass Valve eliminates the expensive installation costs and space limitations of conventional three valve by-pass systems. It can be used with gases and liquids compatible with nylon Buna N and brass.

EASY TO INSTALL

• No need for separate valves and fittings to braze them into proper sequence
• All parts are enclosed in one integral unit
• Compression fittings utilize a reusable rubber ferrule
• Metal to plastic design makes fittings completely rotatable and eliminates leakage
• Compact design permits ease of installation

TWO TYPES TO CHOOSE FROM

1701-1 – Non-Bleed Type

When this model is in by-pass mode, the component being by-passed remains pressurized

1701-2 and 1701-3 – Bleed Type

When these models are placed in the by-pass mode, the component being by-passed automatically depressurizes through a bleed hole in the valve
