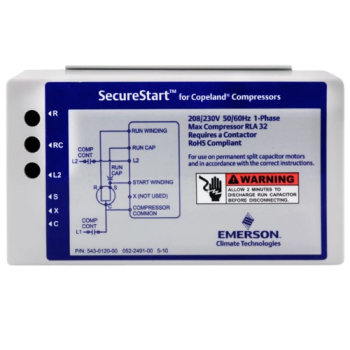

The Copeland 943-0120-00 is a SecureStart module kit consisting of a start capacitor, start relay, and a wiring harness. This device has an ABS plastic body that can operate with 50/60 Hz and 200/230 VAC power supply.
The SecureStart module helps reduce stress, in-rush current, and compressor heating. This device has a low voltage protection that monitors the voltage supply to prevent motor stalling by switching off. It also has a delay function that works on emergency shutdown.
The 943-0120-00 is compatible with the following single-phase compressor model numbers:
| R-22 | R-407C | R-410A |
| ZR22 to ZR61K3-PFV ZR16 to ZR54KA-PFV ZR67 to ZR80KW-PFV |
ZR16 to ZR54K5E-PFV ZR22 to ZR61K3E-PFV ZR48 to ZR68KCE-PFV |
ZP16 to ZP54K3E-PFV ZP16 to ZP54K5E-PFV ZPS20 to ZPS60K4E-PFV |
| Operating Temperature Range | -20 to 60°C (-4 to 140°F) |
|---|---|
| Body Material | ABS Plastic |
| Voltage | 200/230 VAC |
| Frequency | 50/60 Hz |
| Number of Phase | Single-Phase |
| Storage Temperature Range | -40 to 85°C (-40 to 185° |
| Off Time Between Cycles | 3 Minutes |
| Duty Cycle | 10 Starts Per Hour |
By Brian
from Dartmouth NS
Yes, I would recommend this product to a friend or co-worker
Installed 5 months ago in a Lennox 2.5 ton ML14XP1-30-230 heat pump outdoor unit to reduce inrush current from ~78 amps measured with Kaiweets Ht208D clamp meter to less than 40 Amps to allow use with a Champion model 201218 generator (9000 watts operating, 11250 watts startup) through a Generlink 40 Amp surge protected interface. After completing its self-training cycle measured inrush was reduced to ~38 Amps. Compressor start noise dramatically less. Installed myself (electrical engineering experience doesn't hurt) using info available online, has worked flawlessly ever since.
By Michael
from Roy UT
Yes, I would recommend this product to a friend or co-worker
This product works great. Easy to install. came with easy to follow installation instructions. I did a lot of research before choosing this product for my AC System. I am not disappointed.
By Larry
from Punta Gorda FL
Yes, I would recommend this product to a friend or co-worker
Easy install. Reduced starting amps from 20 to 5. As advertised, 75% less. Allows smaller backup generator to run 3 ton AC.
By Larry
from Punta Gorda FL
Yes, I would recommend this product to a friend or co-worker
I have just installed it but it dropped the starting amps from 20 to 5. Now portable generator will be able to operate AC as a backup.
