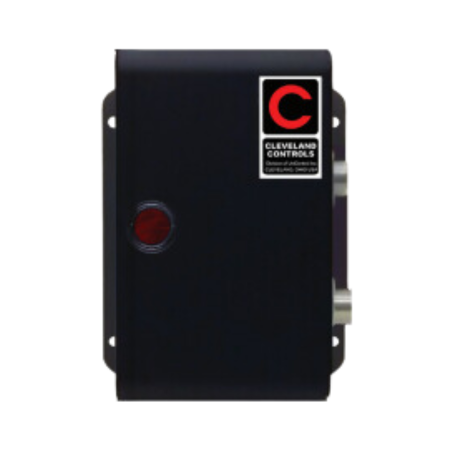

The Cleveland AFS-952-55-B is an SPDT air pressure sensing switch operating with 115 VAC at 50/60 Hz. This device has a 0.05 to 12.0" W.C. field-adjustable set point range.
Applications:
The pressure switch monitors negative, positive, or differential pressure air flow and non-combustible gases. The time delay prevents nuisance shutdowns due to normal draft fluctuations.
The AFS-952 is suitable for industrial and commercial air handling applications. This component is designed for surface mounting on any flat, relatively stable surface free of vibration.
| Maximum Operating Pressure | 1/2 (0.5) psi |
|---|---|
| Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Set Point Range | 0.05 to 12.0" W.C. |
| Mounting | Diaphragm Vertical |
| Switch Type | SPDT |
| Maximum Operating Temperature | 130°F |
| Application | Air Handling System |
| Time Delay | 8-second (± 3 seconds) |
| Enclosure Rating | NEMA 1 |
Download Product Information:
Cleveland Controls AFS-952-55 Air Pressure Sensing Switch Data Sheet
