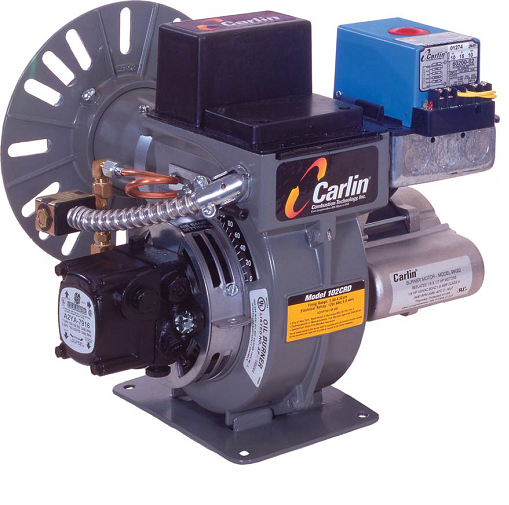

The 99FRD, 100CRD, and 102CRD advanced oil burners feature Carlin’s adjustable head assembly for unmatched fuel/air mixing, smooth light-offs and quiet operation.


Proven for years in the field and in extensive boiler and furnace testing, these burners cover the range from residential to light commercial to meet your needs for oil-burning applications.

Easy adjustment and service

• Only adjustments are the air band and the retention ring, with Carlin’s unique Allen key setting method
• Blower access cover allows full view of blower compartment
• Burners use the same air handling parts for each firing rate range
• Compact design using standard components, including Carlin electronic ignition and microprocessor primary controls. Optional oil line heater and SVC oil valve also available.
• Tapered electrode tip design doubles the life of electrodes

Unmatched Performance

• Positive ignition, stable operation and compact flame
• Not sensitive to draft or moderate back-pressure variations
• Damper not required to maintain high seasonal efficiencies
• Excellent performance in appliances that do not use refractory combustion chambers
• Pressure augmenter in 99FRD increases static pressure to 3.5 inches w.c. – for cleaner starts and stops
