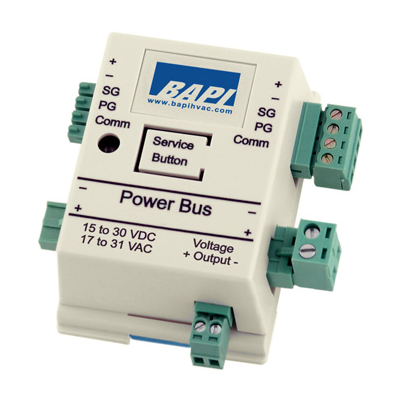

The BAPI Setpoint Output Module is part of the 418 MHz Wireless System used to convert the communication data from a 418 or 900 MHz Wireless Receiver into a Resistance or Voltage for the DDC controller. The setpoint data is easily received from a Receiver via a four-wire bus.

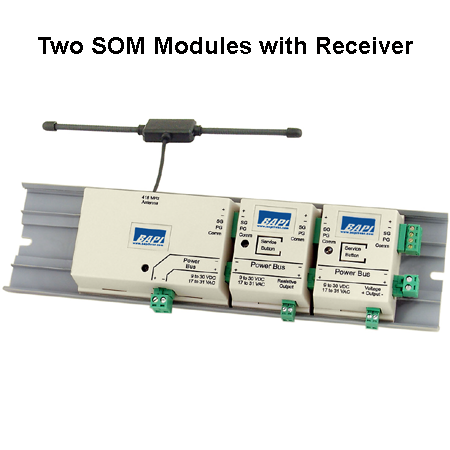

In a single receiver, it can accept up to 127 different Setpoint Output Modules or Analog Output Modules. It can be factory calibrated to output a setpoint signal from a wireless room transmitter

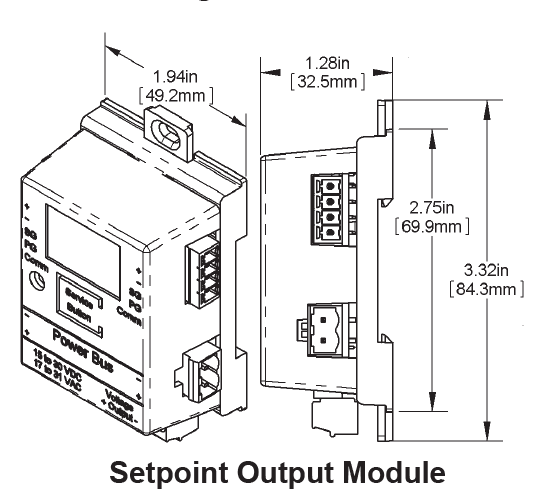

You can mount the module in a surface, 35 mm DIN rail, or 2.75 Wide Snaptrack. The unit is trained to a single transmitter setpoint consisting of a pushbutton and LED
| Material & Rating | ABS Plastic, UL94, V-0 |
|---|---|
| Environmental Operation Range (Humidity) | 5% to 95% RH non-condensing |
| Environmental Operation Range (Temperature) | 32F to 140F (0C to 60C) |
| Output Resolution | Resistance Output: ~40 ohms; Voltage Output: 10 bit |
| BUS Cable Distance | 4,000 ft with shielded, twisted pair cable (Belden 9841, Belden 8132 or equivalent) |
| Lost Communication Timeout | 15 minutes (Fast Flash) Reverts to its last command |
| Power Consumption | 3 mA maximum DC, 0.1 VA maximum AC |
| Analog Input Bias Voltage | 5 VDC maximum (Resistance Output Modules only) |
| Output Current | 1 mA |
| Supply Power (half wave) | Resistance models: 9-30 VDC or 17-31; VAC 0-5VDC models: 9-30 VDC or 17-31; VAC 0-10VDC models: 15-30 VDC, 17-35 VAC |
