BAPI Current Output Module for 418 MHz Wireless System

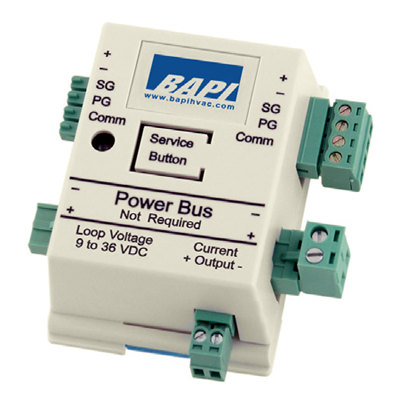

The Current Output Module function is to convert temperature data from the BAPI 418 or 900 MHz Receiver into a 4-20 mA signal for the Direct Digital Controller. The module has a pushbutton and LED. It can be trained to the transmitter by pressing the "service button" located on top of the module.

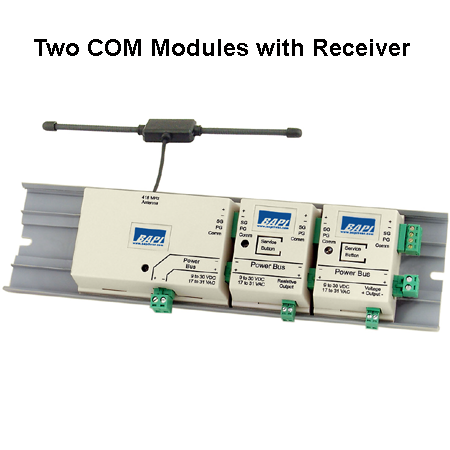

BAPI 418 MHz Wireless System consists of a transmitter, receiver, and analog output modules. Operation starts at the Transmitter sending measured temperature or humidity to a Receiver. The analog output module receives the data through a four-wire bus and converts the data to a voltage, current, or resistance signal which is sent to the controller. A single BAPI Receiver can accept up to 127 different Output Modules.

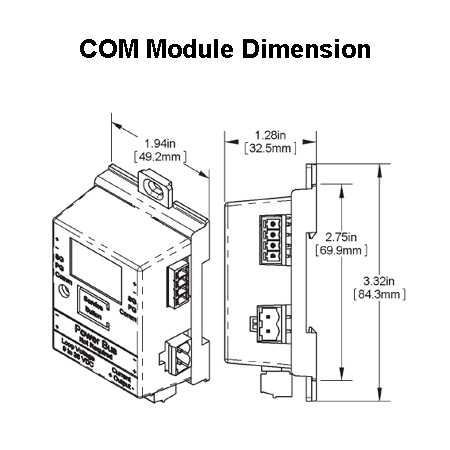

Easily installed on surface, 35mm DIN rail or 2.75" Wide Snaptrack.
| Material Rating | UL94 V-0 |
|---|---|
| Material | ABS Plastic |
| Environmental Operation Range (Humidity) | Humidity 5% to 95% RH non-condensing |
| Environmental Operation Range (Temperature) | 32F to 140F (0C to 60C) |
| Output Resolution | 12 bit, 4096 counts |
| BUS Cable Distance | 4,000 ft with shielded, twisted pair cable (Belden 9841, Belden 8132 or equivalent) |
| Lost Communication Timeout | 15 minutes (Fast Flash), Temperature & Full Scale revert to 4 mA, %RH reverts to 20 mA |
| Power Consumption (Half Wave) | Loop Powered 20 mA maximum, Loop Voltage Range 9-36 VDC |
| Output Current Range | 4-20 mA (factory calibrated) |
